HMF8M8M4G - FLASH-ROM MODULE

The HMF8M8M4G is a high-speed flash read only memory (FROM) module containing 8,388,608 words organized in a x8bit configuration.

The module consists of four 2M x 8 FROM mounted on a 72-pin, single-sided, FR4-printed circuit board.

Commands are written to the command register using standard micropro

HMF8M8M4G Features

* w Part identification - HMF8M8M4 (Solder Plating Lead) PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 - 70 - 90 -120 19 20 21 22 23 72-pin SIMM M 24 Vss /CE0 /CE1 /CE2 /CE3 Vcc /WE /OE PIN ASSIGNMENT SYMBOL PIN 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 SYMBOL A15 A16

HMF8M8M4G_HanbitElectronics.pdf

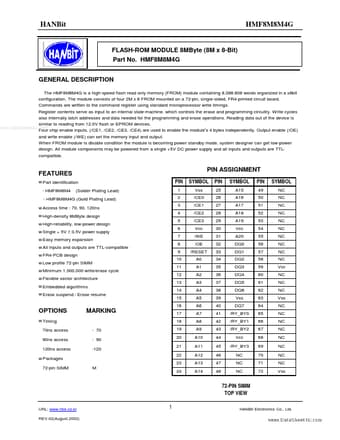

Preview of HMF8M8M4G PDF
