HC1000 - High End Humidity Sensors

Datasheet Summary

Features

  • working range 0-100 %RH linearity error < 1.5 %RH wettable long term stable highest repeatability good resistance to pollutants HC1000 HC101 500 ± 50 pF 200 ± 20 pF 1.40 pF / %RH 0.56 pF / %RH 0 100 %RH -40 +120 degC < ± 1.5 %RH 1.7 ± 0.15 %RH < 6 sec. ∆RH = g.
  • RH.
  • (T - 20) g = -0.003 ± 10 % drift < 1 % / year < 0.05 typical 5 V max (UPP).

📥 Download Datasheet

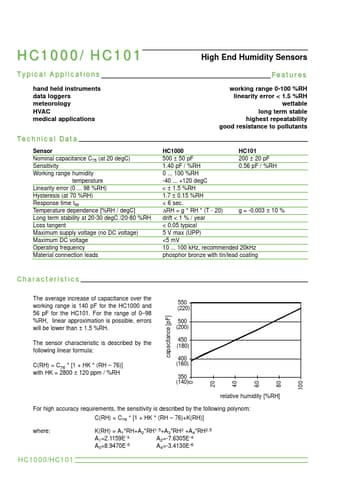

Datasheet preview – HC1000

Datasheet Details

Part number HC1000
Manufacturer Handling Instructions
File Size 35.00 KB
Description High End Humidity Sensors
Datasheet download datasheet HC1000 Datasheet
Additional preview pages of the HC1000 datasheet.

📁 Similar Datasheet

  • HC1000 - Gel-Like Modulus Gap Filling Material (Bergquist)
  • HC10 - TRIPLE 3-INPUT POSITIVE-NAND GATES (Texas Instruments)
  • HC106B - 2A SCRs (HAOHAI)
  • HC106BF - 2A SCRs (HAOHAI)
  • HC106BS - 2A SCRs (HAOHAI)
  • HC106D - Sensitive Gate Silicon Controlled Rectifier (Huashan)
  • HC106D - 2A SCRs (HAOHAI)
  • HC106DF - 2A SCRs (HAOHAI)
  • HC106DS - 2A SCRs (HAOHAI)
  • HC106G - 2A SCRs (HAOHAI)
Other Datasheets by Handling Instructions
  • HC101 - High End Humidity Sensors

Full PDF Text Transcription

Click to expand full text
HC1000/ HC101 High End Humidity Sensors Typical Applications hand held instruments data loggers meteorology HVAC medical applications Technical Data Sensor Nominal capacitance C76 (at 20 degC) Sensitivity Working range humidity temperature Linearity error (0 ... 98 %RH) Hysteresis (at 70 %RH) Response time t90 Temperature dependence [%RH / degC] Long term stability at 20-30 degC /20-80 %RH Loss tangent Maximum supply voltage (no DC voltage) Maximum DC voltage Operating frequency Material connection leads Features working range 0-100 %RH linearity error < 1.5 %RH wettable long term stable highest repeatability good resistance to pollutants HC1000 HC101 500 ± 50 pF 200 ± 20 pF 1.40 pF / %RH 0.56 pF / %RH 0 ... 100 %RH -40 ... +120 degC < ± 1.5 %RH 1.7 ± 0.15 %RH < 6 sec.
