HC10 Datasheet - Texas Instruments

HC10 TRIPLE 3-INPUT POSITIVE-NAND GATES

ordering information NC * No internal connection The ’HC10 devices contain three independent 3-input NAND gates. They perform the Boolean function Y = A * B * C or Y = A + B + C in positive logic. ORDERING INFORMATION TA PACKAGE† ORDERABLE PART NUMBER TOP-SIDE MARKING .

D Wide Operating Voltage Range of 2 V to 6 V D Outputs Can Drive Up To 10 LSTTL Loads D Low Power Consumption, 20-µA Max ICC SN54HC10 . . . J OR W PACKAGE SN74HC10 . . . D, DB, N, NS, OR PW PACKAGE (TOP VIEW) 1A 1 1B 2 2A 3 2B 4 2C 5 2Y 6 GND 7 14 VCC 13 1C 12 1Y 11 3C 10 3B 9 3A 8 3Y SN54HC10, SN74HC10 TRIPLE 3ĆINPUT POSITIVEĆNAND GATES SCLS083D DECEMBER 1982 REVISED AUGUST 2003 D Typical tpd = 9 ns D ±4-mA Output Drive at 5 V D Low Input Current of 1 µA Max SN54HC10 . . .

HC10 Datasheet (1.24 MB)

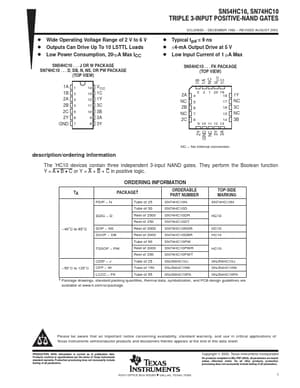

HC10 Datasheet Preview — Preview of HC10 PDF

Datasheet Details

Part number:

HC10

Manufacturer:

Texas Instruments ↗

File Size:

1.24 MB

Description:

Triple 3-input positive-nand gates.
