HC165 Datasheet - Texas Instruments

8-Bit Parallel-Load Shift Registers

HC165 Features

* 1 Wide Operating Voltage Range of 2 V to 6 V

* Outputs Can Drive Up to 10 LSTTL Loads

* Low Power Consumption, 80-µA Maximum ICC

* Typical tpd = 13 ns

* ±4-mA Output Drive at 5 V

* Low Input Current of 1 µA Maximum

* Complementary Outputs

HC165 General Description

The SNx4HC165 devices are 8-bit parallel-load shift registers that, when clocked, shift the data toward a serial (QH) output. Parallel-in access to each stage is provided by eight individual direct data (A *H) inputs that are enabled by a low level at the shift/load (SH/LD) input. The SNx4HC1.

HC165 Datasheet (1.32 MB)

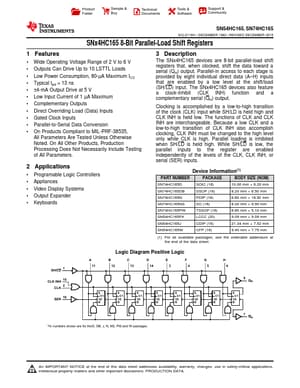

Preview of HC165 PDF

Datasheet Details

Part number:

HC165

Manufacturer:

Texas Instruments ↗

File Size:

1.32 MB

Description:

8-bit parallel-load shift registers.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN54HC165, SN74HC165 SCLS116H DECEMBER 1982
