UTC339 - Quad Differential Comparator

Description

The UTC339 consists of four independent voltage comparators designed specifically to operate from a single power supply over a wide voltage range.

Features

  • Single or dual supply operation.
  • Wide operating supply range(Vcc=2V~36V).
  • Input common-mode voltage includes ground.
  • Low supply current drain ICC=0.8mA(Typical).
  • Open collector outputs for wired and connection.
  • Low input bias current Ibias=25nA(Typical).
  • Low output saturation voltage.
  • Output compatible with TTL ,DTL, and CMOS logic system DIP-14.

📥 Download Datasheet

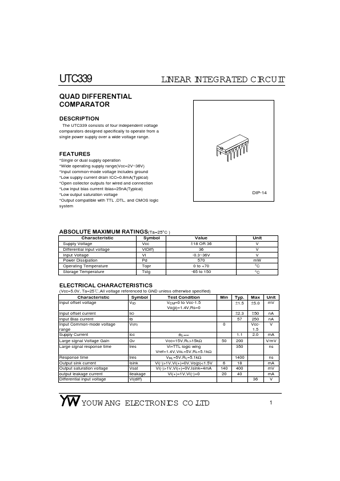

Datasheet preview – UTC339

Datasheet Details

Part number UTC339
Manufacturer Hangzhou Silan
File Size 83.00 KB
Description Quad Differential Comparator
Datasheet download datasheet UTC339 Datasheet
Additional preview pages of the UTC339 datasheet.

📁 Similar Datasheet

  • UTC3308 - Single Supply Dual High Current Operational Amplifier Operating (Unisonic)
  • UTC31001 - TELEPHONE TONE RINGER (Unisonic Technologies)
  • UTC31002 - TELEPHONE TONE RINGER (Unisonic Technologies)
  • UTC31002A - TELEPHONE TONE RINGER (Unisonic Technologies)
  • UTC31101 - Voice Compander (YOUWANG ELECTRONICS)
  • UTC317 - 3-TERMINAL 1.5A POSITIVE ADJUSTABLE VOLTAGEREGULATOR (YOUWANG ELECTRONICS)
  • UTC317B - 3-TERMINAL 1.5A POSITIVE ADJUSTABLE VOLTAGEREGULATOR (YOUWANG ELECTRONICS)
  • UTC317TB - 3-TERMINAL 1.5A POSITIVE ADJUSTABLE VOLTAGEREGULATOR (YOUWANG ELECTRONICS)
  • UTC324 - Qyad Operational Amplifiers (Youwang)
  • UTC34018 - Voice Switched Speakerphone (Youwang)
Other Datasheets by Hangzhou Silan

Full PDF Text Transcription

Click to expand full text
UTC339 QUAD DIFFERENTIAL COMPARATOR DESCRIPTION The UTC339 consists of four independent voltage comparators designed specifically to operate from a single power supply over a wide voltage range. LI NEAR I NTEGRATED CI RCUI T FEATURES *Single or dual supply operation *Wide operating supply range(Vcc=2V~36V) *Input common-mode voltage includes ground *Low supply current drain ICC=0.
