HSD150MX15-B - Display

Product Overview

HannStar

Datasheet Details

Part number	HSD150MX15-B
Manufacturer	HannStar
File Size	570.83 KB
Description	Display
Datasheet	HSD150MX15-B Datasheet
Additional preview pages of the HSD150MX15-B datasheet.

Product details

Description

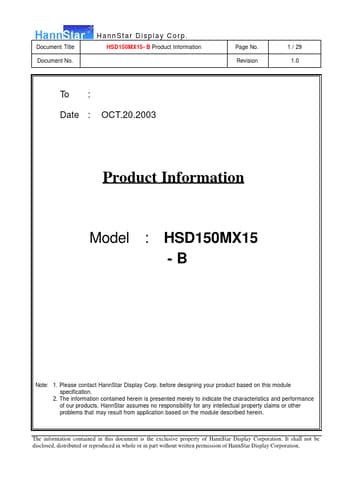

of change OCT.20.2003 Specification for HSD150MX15-B was first issued.The information contained in this document is the exclusive property of HannStar Display Corporation.It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr HannStar Display Corp.Document Title Document No.HSD150MX15- B Product Information Page No.Revision 3 / 29 1.0 Contents

Features

15” XGA TFT LCD panel 2 CCFLs Backlight system Supported XGA (V: 768 lines, H: 1024 pixels) resolution Supported to 75Hz refresh rate With LCD Timing Controller 1.3 General information Item Specification Unit Outline dimension 321.0¡Ñ249.0¡Ñ10.3 (typ. ) Mm Display area 304.1(H) x 228.1(V) (15.0” diagonal) Mm Number of Pixel 1024(H) x 768(V) Pixels Pixel pitch Pixel arrangement Display color Display mode Surface treatment Weight Back-light Input signal Power consumption (with B/L) Optimum viewing.
