HSD150MX17-Axx - Display Module

Product Overview

HannStar

Datasheet Details

Part number	HSD150MX17-Axx
Manufacturer	HannStar
File Size	346.61 KB
Description	Display Module
Datasheet	HSD150MX17-Axx Datasheet
Note	This datasheet PDF includes multiple part numbers: HSD150MX17-Axx, HSD150MX17. Please refer to the document for exact specifications by model.
Additional preview pages of the HSD150MX17-Axx datasheet.

Product details

Description

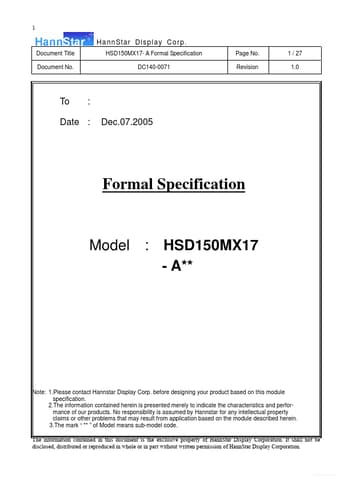

of change Dec.07.2005 Formal specification for HSD150MX17-A was first issued.The information contained in this document is the exclusive property of HannStar Display Corporation.It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.Free Datasheet http://www.Datasheet4U.com 3 H a n n Sta r D i s p l a y C o r p .Document Title Document No.HSD150MX17- A Formal Specification DC140-0071 Page No.Revision 3 / 27 1

Features

15” XGA TFT LCD panel.
2 CCFLs Backlight system.
Supported XGA (V:768 lines, H:1024 pixels) resolution.
Supported to 75Hz refresh rate.
With LCD Timing Controller 1.3 General information Item Outline dimension Display area Number of Pixel Pixel pitch Pixel arrangement Display color Display mode Surface treatment Weight Back-light Input signal Power consumption (with B/L) Optimum viewing direction Specification 326..5×253.5×10.6 (typ. ) 304.1(H) x 228.1(V) (15.0” diagona.
