CD74HCT393M

High Speed CMOS Logic Dual 4 -Stage Binary Counter

CD74HCT393M Features

* Fully Static Operation

* Buffered Inputs

* Common Reset

* Negative-Edge Clocking

* Typical fMAX = 60 MHz at VCC = 5V, CL = 15pF, TA = 25oC

* Fanout (Over Temperature Range) - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads - Bus Driver

CD74HCT393M General Description

The Harris CD74HC393 and CD74HCT393 are 4-stage ripple-carry binary counters. Al counter stages are masterslave flip-flops. The state of the stage advances one count on the negative transition of each clock pulse; a high voltage level on the MR line resets all counters to their zero state. All inputs .

CD74HCT393M Datasheet (31.70 KB)

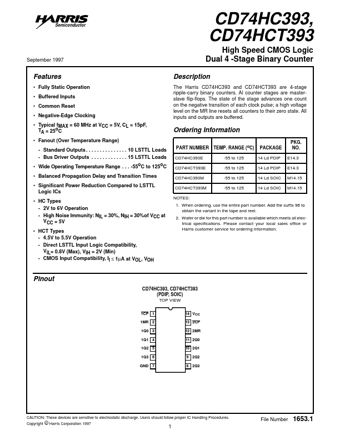

Preview of CD74HCT393M PDF

Datasheet Details

Part number:

CD74HCT393M

Manufacturer:

Harris Corporation

File Size:

31.70 KB

Description:

High speed cmos logic dual 4 -stage binary counter.
