HT-191 - Top View LED

Product Overview

Harvatek

Part number	HT-191
Manufacturer	Harvatek
File Size	819.09 KB
Description	Top View LED
Datasheet	HT-191 Datasheet
Additional preview pages of the HT-191 datasheet.

Chip LED ( 1.6 x 0.8 x 0.6 ).

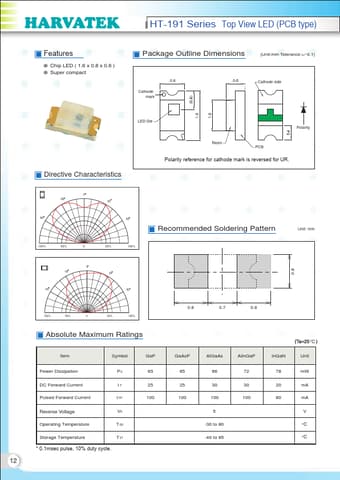

Super compact 0.8 Cathode mark 0.6 Package Outline Dimensions (Unit:mm Tolerance:+/-0.1) Cathode side (0.6) LED Die Polarity 0.4 Resin PCB Polarity reference for cathode mark is reversed for UR. Directive Characteristics 0 -30 30 -60 60 Recommended Soldering Pattern 100% 50% 0 50% 100% 1.6 1.0 Unit: mm -30 30 -60 60 0.8 100% 50% 0 50% 100% 0.7 0.8 Absolute Maximum Ratings O 0.8 0 C Item Power Dissipation DC Forward Current Pulsed.
