42BYGH208-52A Datasheet - HeTai

42BYGH208-52A HYBRID STEPPING MOTOR

42BYGH HYBRID STEPPING MOTOR General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 28N (20mm from front flange) 10N Technical Specifications Model Step Angle Lead Wire Voltage Current Resistance Inductance Holding Torque （°/Step） （NO.） （V） （A/Phase） （Ω/Phase） （mH/Phase） （g.cm） 42BYGH208-52A 4 12 0.4 30 42 2500 42BYGH243-0.

42BYGH208-52A Datasheet (1.17 MB)

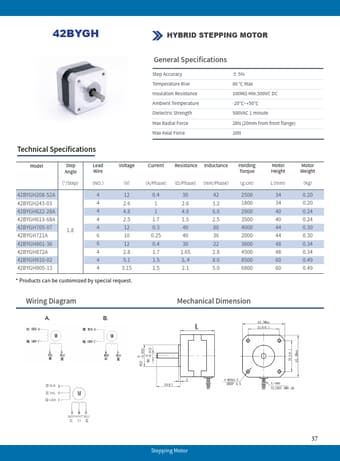

Preview of 42BYGH208-52A PDF

Datasheet Details

Part number:

42BYGH208-52A

Manufacturer:

HeTai

File Size:

1.17 MB

Description:

Hybrid stepping motor.
