57BYGH815 HYBRID STEPPING MOTOR

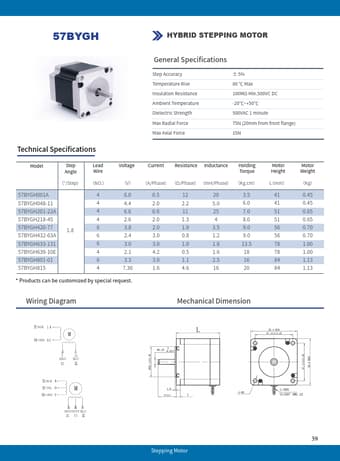

57BYGH HYBRID STEPPING MOTOR General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 75N (20mm from front flange) 15N Technical Specifications Model Step Angle Lead Wire Voltage Current Resistance Inductance Holding Torque （°/Step）（NO.）（V）（A/Phase）（Ω/Phase）（mH/Phase）（Kg.cm） 57BYGH001A 4 6.0 0.5 12 20 3.5 57BYGH048-11 .

57BYGH815 Datasheet (1.64 MB)

57BYGH815 Datasheet Preview — Preview of 57BYGH815 PDF

Datasheet Details

Part number:

57BYGH815

Manufacturer:

HeTai

File Size:

1.64 MB

Description:

Hybrid stepping motor.
