M219 Datasheet - Heraeus Sensor Technology

M219 Platinum Resistance Temperature Detector

Platinum Resistance Temperature Detector M 219 M-series PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, Appliances, HVAC, Energy Management, Life Science and the process industry. Nominal Resistance R0 1000 Ohm at 0°C Toler ance DIN EN 60751 1996-07 Class 2B Tolerance DIN EN 60751 2009-05 F 0.6 Or der Number Plastic Box 32 208 728 Lead Length (L) ± 1mm 7 T.

M219-HeraeusSensorTechnology.pdf

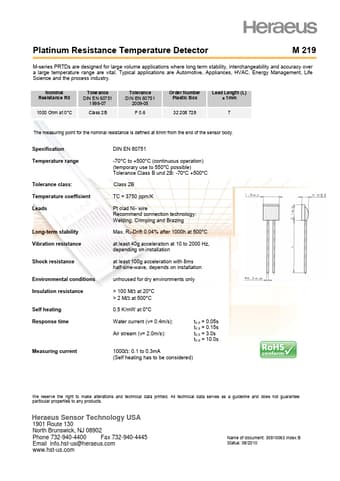

Preview of M219 PDF

Datasheet Details

Part number:

M219

Manufacturer:

Heraeus Sensor Technology

File Size:

466.54 KB

Description:

Platinum resistance temperature detector.
