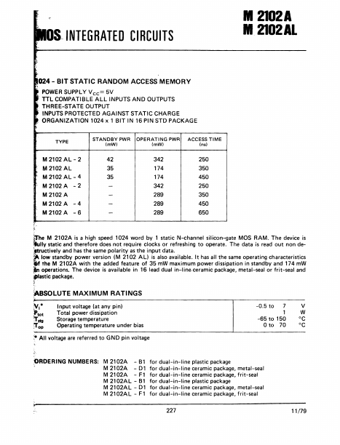

M2102A STATIC RANDOM ACCESS MEMORY

INTEGRATED CIRCUITS M 2102A M 2102AL - BIT STATIC RANDOM ACCESS MEMORY POWER SUPPLY V cc= 5V TTL COMPATIBLE ALL INPUTS AND OUTPUTS THREE-STATE OUTPUT INPUTS PROTECTED AGAINST STATIC CHARGE ORGANIZATION 1024 x 1 BIT IN 16 PIN STD PACKAGE TYPE STANDBY PWR OPERATING PW (mW) (mW) ACCESS TIME (n5) M2102AL-2 42 M2102AL 35 M2102AL-4 35 M 2102 A -2 M 2102 A M 2102 A -4 M 2102 A -6 342 250 174 350 174 450 342 250 289 350 289 450 289 650 ~he M 2102A is a high speed 1024 wor.
