M211 Datasheet - Solid State Optronic

1 Form A Solid State Relay

M211 Features

* APPLICATIONS

* Ultra miniature 4-pin small outline package Low input control power consumption (2.5mA TYP) 120mA maximum continuous load current 30 ohms maximum on-resistance High Input-Output Isolation (1.5kV MIN) Long life/high reliabili

M211 General Description

www.datasheet4u.com The M211 is a bi-directional, single-pole, single-throw, normally open multipurpose solid-state relay in a miniature 4-pin small outline package. It is designed to replace electromechanical relays in general purpose switching applications. The relay consists of an integrated circ.

M211 Datasheet (309.77 KB)

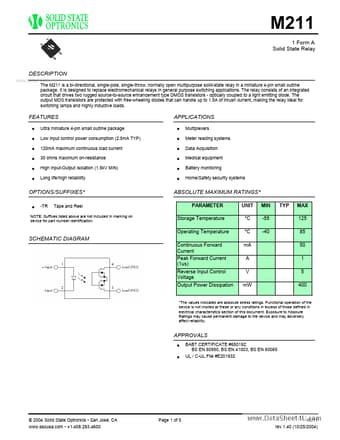

M211 Datasheet Preview — Preview of M211 PDF

Datasheet Details

Part number:

M211

Manufacturer:

Solid State Optronic

File Size:

309.77 KB

Description:

1 form a solid state relay.
