M2115 Datasheet - Unisonic Technologies

DUAL OPERATIONAL AMPLIFIER

M2115 Features

* Operating Voltage: ±1V ~±7V

* Low Saturation Output Voltage: ±2.0Vp-p@V+=±2.5V

* Slew Rate: 4V/μs (typ.)

* Unity Gain Bandwidth: 12MHz (typ.)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free M2115L-D08-T M2115G-D08-T - M2115G-S08-R - M2115G-P08-R Package D

M2115 General Description

The UTC M2115 is a low operating Voltage(±1.0V min.) and low saturation output voltage(±2.0V p-p at supply voltage ±2.5V) operational amplifier. It is applicable to handy type CD,radio cassete CD, and portable DAT, that are digital audio apparatus which require the 5V single supply operation and hig.

M2115 Datasheet (188.72 KB)

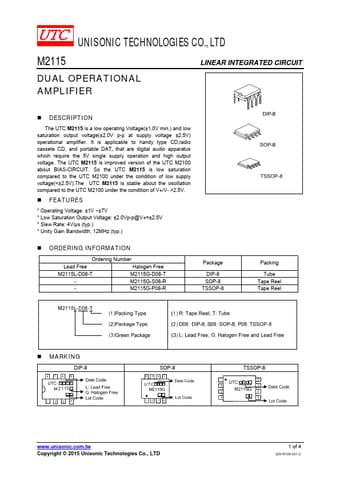

M2115 Datasheet Preview — Preview of M2115 PDF

Datasheet Details

Part number:

M2115

Manufacturer:

Unisonic Technologies

File Size:

188.72 KB

Description:

Dual operational amplifier.
