HDSP335x

(HDSP-xxxx) Low Current Seven Segment Displays

HDSP335x Features

* Low Power Consumption Industry Standard Size Industry Standard Pinout Choice of Character Size 7.6 mm (0.30 in), 10 mm (0.40 in), 10.9 mm (0.43 in), 14.2 mm (0.56 in), 20 mm (0.80 in) Choice of Colors AlGaAs Red, High Efficiency Red (HER), Yellow, Green Excell

HDSP335x General Description

These low current seven segment displays are designed for applications requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 1 mA per segment are available. Pin f.

HDSP335x Datasheet (340.73 KB)

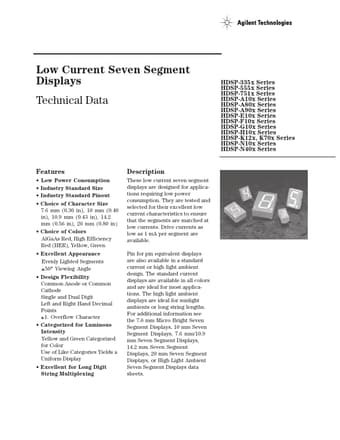

Preview of HDSP335x PDF

Datasheet Details

Part number:

HDSP335x

Manufacturer:

Hewlett-Packard

File Size:

340.73 KB

Description:

(hdsp-xxxx) low current seven segment displays.
Low Current Seven Segment Displays Technical Data HDSP-335x Series HDSP-555x Series HDSP-751x Series HDSP-A10x Series HDSP-A80x Series HDSP-A90x Seri.
