HDSP5730 Datasheet - Hewlett-Packard

HDSP5730 7-Segment Displays

The HDSP-3530/-3730/-5530/ -3900 and HDSP-4030/-4130/ -5730/-4200 are 7.6 mm, 10.9 mm/14.2 mm/20.3 mm high efficiency red and yellow displays designed for use in high light ambient condition. The four sizes of displays allow for viewing distances at 3, 6, 7, and 10 meters. These seven segment displa.

HDSP5730 Features

* High Light Output Typical Intensities of Up to 7.0 mcd/seg at 100 mA pk 1 of 5 Duty Factor

* Capable of High Current Drive Excellent for Long Digit String Multiplexing

* Four Character Sizes 7.6 mm, 10.9 mm, 14.2 mm, and 20.3 mm

* Choice of Two Colors High Efficienc

HDSP5730 Datasheet (299.85 KB)

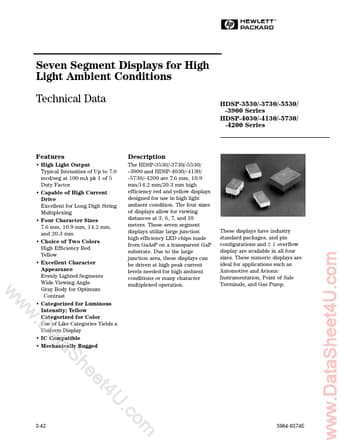

Preview of HDSP5730 PDF
HDSP5730 Datasheet Preview Page 2 HDSP5730 Datasheet Preview Page 3

Datasheet Details

Part number:

HDSP5730

Manufacturer:

Hewlett-Packard

File Size:

299.85 KB

Description:

7-segment displays.
