HSMZ-C540, HSMA-C540_Hewlett - (HSMx-C540) Oval Lens High Performance Surface Mount LEDs

HSMZ-C540 Description

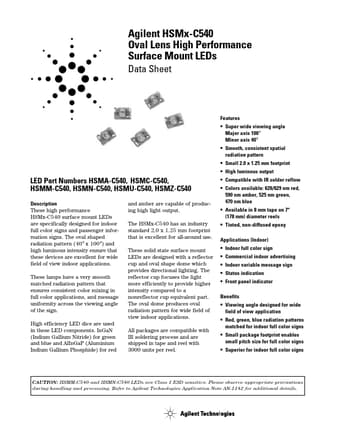

www.DataSheet4U.com Agilent HSMx-C540 Oval Lens High Performance Surface Mount LEDs Data Sheet LED Part Numbers HSMA-C540, HSMC-C540, HSMM-C540, HSM.
These high performance HSMx-C540 surface mount LEDs are specifically designed for indoor full color signs and passenger information signs.

HSMZ-C540 Features

* Super wide viewing angle Major axis 100° Minor axis 40°
* Smooth, consistent spatial radiation pattern
* Small 2.0 x 1.25 mm footprint
* High luminous output
* Compatible with IR solder reflow
* Colors available: 626/629 nm red, 590 nm amber, 525 nm

HSMZ-C540 Applications

* These lamps have a very smooth matched radiation pattern that ensures consistent color mixing in full color applications, and message uniformity across the viewing angle of the sign. High efficiency LED dice are used in these LED components. InGaN (Indium Gallium Nitride) for green and blue and AlI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSMZ-C540, HSMA-C540_Hewlett. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSMZ-C540, HSMA-C540_Hewlett
Manufacturer
Hewlett-Packard
File Size
221.65 KB
Datasheet
HSMA-C540_Hewlett-Packard.pdf
Description
(HSMx-C540) Oval Lens High Performance Surface Mount LEDs
Note
This datasheet PDF includes multiple part numbers: HSMZ-C540, HSMA-C540_Hewlett.
Please refer to the document for exact specifications by model.
