HSM104 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)

Datasheet Summary

Features

  • Fast switching Glass passivated device Ideal for surface mounted.

📥 Download Datasheet

Datasheet preview – HSM104

Datasheet Details

Part number HSM104
Manufacturer RectrON Semiconductor
File Size 26.86 KB
Description SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)
Datasheet download datasheet HSM104 Datasheet
Additional preview pages of the HSM104 datasheet.

📁 Similar Datasheet

  • HSM104 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HSM101 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HSM102 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HSM103 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HSM105 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HSM106 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HSM107 - Silicon Schottky Barrier Diode for System Protection (Hitachi Semiconductor)
  • HSM107S - Silicon Schottky Barrier Diode for System Protection (Hitachi Semiconductor)
  • HSM109WK - Silicon Schottky Barrier Diode (Hitachi)
  • HSM1100G - 1 Amp Schottky Rectifier (Microsemi Corporation)
Other Datasheets by Rectron Semiconductor
  • HSM101 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)
  • HSM102 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)
  • HSM103 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)
  • HSM105 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)
  • HSM106 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere)

Full PDF Text Transcription

Click to expand full text

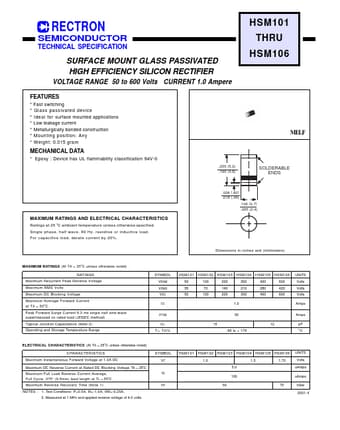

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION HSM101 THRU HSM106 SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere FEATURES * * * * * * * Fast switching Glass passivated device Ideal for surface mounted applications Low leakage current Metallurgically bonded construction Mounting position: Any Weight: 0.015 gram MELF MECHANICAL DATA * Epoxy : Device has UL flammability classification 94V-0 .205 (5.2) .190 (4.8) SOLDERABLE ENDS .028 (.60) .018 (.46) .106 (2.7) .095 (2.4) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
