HSM11SPT - HIGH EFFICIENCY SILICON RECTIFIER

HSM11SPT Description

CHENMKO ENTERPRISE CO.,LTD SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER VOLTAGE RANGE 50 - 1000 Volts CURRENT 1.0 Ampere HSM11SPT.

HSM11SPT Features

* Small surface mounting type. (SOD-123S)
* Low forward voltage, high current capability
* Low leakage current
* Metallurgically bonded construction
* Glass passivated junction
* High temperature soldering guaranteed : 260oC/10 seconds at terminals SOD-123S 0.5~1.0 2.55~3.0

📥 Download Datasheet

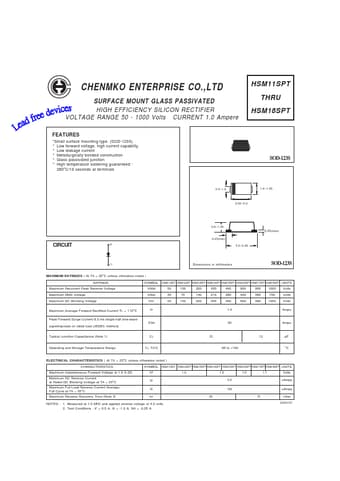

Preview of HSM11SPT PDF
datasheet Preview Page 2

Datasheet Details

Part number
HSM11SPT
Manufacturer
CHENMKO ENTERPRISE
File Size
66.32 KB
Datasheet
HSM11SPT-CHENMKOENTERPRISE.pdf
Description
HIGH EFFICIENCY SILICON RECTIFIER
