HSM12SPT - HIGH EFFICIENCY SILICON RECTIFIER

This page provides the datasheet information for the HSM12SPT, a member of the HSM11SPT HIGH EFFICIENCY SILICON RECTIFIER family.

Datasheet Summary

Features

  • Small surface mounting type. (SOD-123S).
  • Low forward voltage, high current capability.
  • Low leakage current.
  • Metallurgically bonded construction.
  • Glass passivated junction.
  • High temperature soldering guaranteed : 260oC/10 seconds at terminals SOD-123S 0.5~1.0 2.55~3.0 1.4~1.95.

📥 Download Datasheet

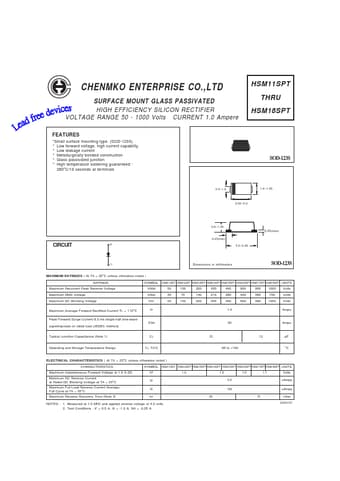

Datasheet preview – HSM12SPT
