HSM124S - Silicon Epitaxial Planar Diode for Switching

Datasheet Summary

Features

  • Low reverse current.
  • MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSM124S Laser Mark A1 Package Code MPAK Pin Arrangement 3 2 1 (Top View) 1 Cathode 2 2 Anode 1 3 Cathode 1 Anode 2 HSM124S Absolute Maximum Ratings.
  • 2 (Ta = 25°C) Item Peak reverse voltage Reverse voltage Peak forward current Non-Repetitive peak forward surge current Average forward current Junction temperature Storage temperature N.

📥 Download Datasheet

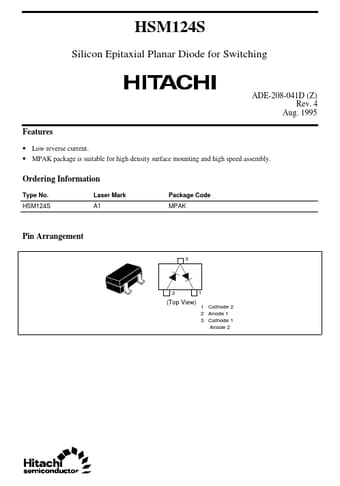

Datasheet preview – HSM124S

Datasheet Details

Part number HSM124S
Manufacturer Hitachi Semiconductor
File Size 26.64 KB
Description Silicon Epitaxial Planar Diode for Switching
