HSM107S - Silicon Schottky Barrier Diode for System Protection

Product Overview

Hitachi Semiconductor

Part number	HSM107S
Manufacturer	Hitachi Semiconductor
File Size	31.24 KB
Description	Silicon Schottky Barrier Diode for System Protection
Datasheet	HSM107S Datasheet

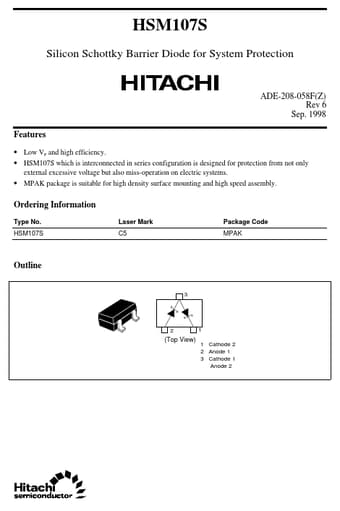

Additional preview pages of the HSM107S datasheet.

Low VF and high efficiency.
HSM107S which is interconnected in series configuration is designed for protection from not only external excessive voltage but also miss-operation on electric systems.
MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSM107S Laser Mark C5 Package Code MPAK Outline 3 2 1 (Top View) 1 Cathode 2 2 Anode 1 3 Cathode 1 Anode 2 HSM107S Absolute Maximum Ratings (Ta = 25°C).
