HSM126S - Silicon Schottky Barrier Diode for System Protection

HSM126S Description

HSM126S Silicon Schottky Barrier Diode for System Protection ADE-208-111C (Z) Rev.3 May 1995 .

HSM126S Features

* HSM126S which is connected in series configuration enable to protect electric systems from missoperation against external + and
* surge.
* Low VF and low leakage current.
* MPAK package is suitable for high density surface mounting and high speed assembly. Ordering

📥 Download Datasheet

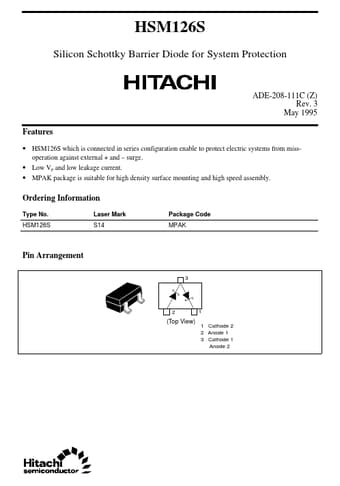

Preview of HSM126S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSM126S
Manufacturer
Hitachi Semiconductor
File Size
29.32 KB
Datasheet
HSM126S_HitachiSemiconductor.pdf
Description
Silicon Schottky Barrier Diode for System Protection
