HIRF840F - N-Channel Power MOSFET

Product Overview

Hi-Sincerity Mocroelectronics

Datasheet Details

Part number	HIRF840F
Manufacturer	Hi-Sincerity Mocroelectronics
File Size	47.13 KB
Description	N-Channel Power MOSFET
Datasheet	HIRF840F Datasheet
Note	This datasheet PDF includes multiple part numbers: HIRF840F, HIRF840_Hi. Please refer to the document for exact specifications by model.

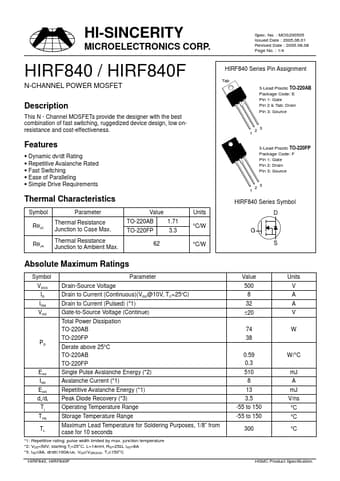

Additional preview pages of the HIRF840F datasheet.

Product details

Description

This N - Channel MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low onresistance and cost-effectiveness.

Features

Dynamic dv/dt Rating.
Repetitive Avalanche Rated.
Fast Switching.
Ease of Paralleling.
Simple Drive Requirements Thermal Characteristics Symbol Parameter RθJC Thermal Resistance Junction to Case Max. RθJA Thermal Resistance Junction to Ambient Max. Value TO-220AB 1.71 TO-220FP 3.3 62 Units °C/W °C/W HIRF840 Series Pin Assignment Tab 3-Lead Plastic TO-220AB Package Code: E Pin 1: Gate Pin 2 & Tab: Drain Pin 3: Source 123 3-Lead Plastic T.
