HX8218-A TFT LCD Source Driver

HX8218-A is a 960-channel output Source Driver with built-in TCON and DAC. The interface follows digital 8-bits serial/24-bits parallel RGB, or CCIR601/656 input signals and digital control timing signals. The DAC supports transferring digital RGB data to analog RGB data for the internal Source Driv.

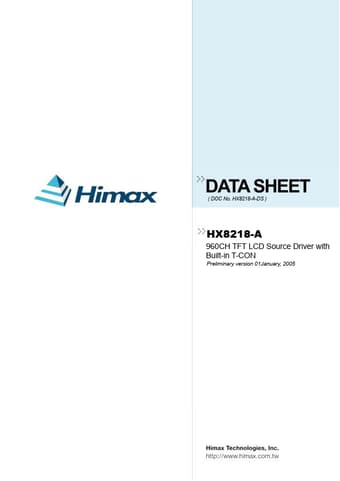

www.DataSheet4U.com HX8218-A 960CH TFT LCD Source Driver with Built-in TCON DataSheet4U.com DataShee Preliminary Version 01 January 2005 HiMAX TECHNOLOGIES, INC. 1F.,NO.12,Nanke 8th Road, Tainan Science-Based Industrial Park, Tainan County, Taiwan 741 . R.O.C. TEL: 886-6-505-0880 FAX: 886-6-505-0891 DOC No: HX8218-A-DS DataSheet4U.com DataSheet 4 U .com www.DataSheet4U.com HX8218-A 960CH TFT LCD Source Driver with Built-in T-CON PRELIMINARY January 2005, Version 01 1. General Descriptio.

HX8218-A Features

* T-CON z Support display resolution 960x240. z Support digital 8-bits serial/24-bits parallel RGB and CCIR601/656 input mode. z Support two types of panel group. z Operation frequency: 30 MHz max. z Support NTSC/PAL TV system. z Built-in zoom in/out function in CCIR601/656 input mode. z OSD overlay s

HX8218-A Datasheet (950.32 KB)
