HX8227-A01 - 720CH TFT LCD Source Driver

HX8227-A01 Description

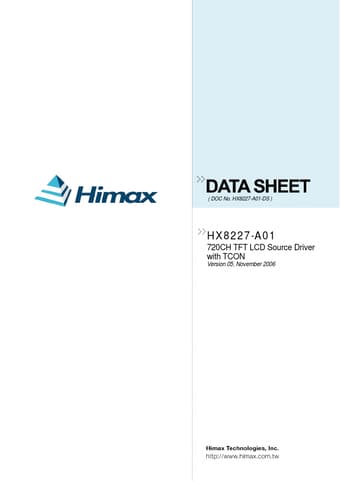

( DOC No.HX8227-A01-DS ) HX8227-A01 720CH TFT LCD Source Driver with TCON Version 05, November 2006 HX8227-A01 720CH TFT LCD Source Driver with TCON.
HX8227-A01 is a 720 channel output source driver with TCON (Timing Controller).

HX8227-A01 Features

* Source Driver 720 channel output source driver for TFT LCD panel Support 8-bit data input for 256 level gray scales Dynamic range: AVSS+0.2V ~ AVDD-0.2V Output voltage deviation: ±20mV. Driver power supply voltage (AVDD): 4.8 ~ 5.2V Bare chip with gold bumper for COG solution. Embedded Timing Contro

📥 Download Datasheet

Preview of HX8227-A01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HX8227-A01
Manufacturer
Himax
File Size
0.96 MB
Datasheet
HX8227-A01-Himax.pdf
Description
720CH TFT LCD Source Driver
