CS4303U - Ultra-fast High Voltage Diodes

Product Overview

📥 Download Datasheet

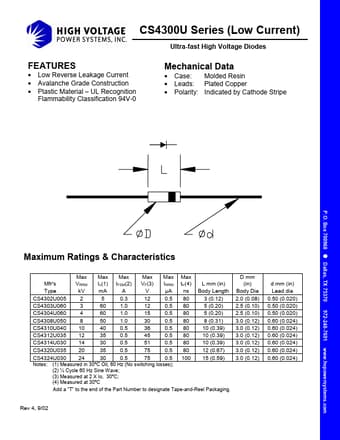

CS4303U Ultra-fast High Voltage Diodes by High Voltage Power Solutions - Datasheet Preview — Datasheet preview – CS4303U

Datasheet Details

Part number	CS4303U
Manufacturer	High Voltage Power Solutions
File Size	159.32 KB
Description	Ultra-fast High Voltage Diodes
Datasheet	CS4303U Datasheet
Note	This datasheet PDF includes multiple part numbers: CS4303U, CS4302U. Please refer to the document for exact specifications by model.
Additional preview pages of the CS4303U datasheet.

Product details

Features

Low Reverse Leakage Current.
Avalanche Grade Construction.
Plastic Material.
UL Recognition Flammability Classification 94V-0 Mechanical Data.
Case: Molded Resin.
Leads: Plated Copper.
Polarity: Indicated by Cathode Stripe P. O. Box 700968 z Dallas, TX 75370 972-248-7691 www. hvpowersystems. com Maximum Ratings & Characteristics Mfr's Type Max VRRM kV Max Io(1) mA Max IFSM(2) A Max VF(3) V Max IRRM µA Max trr(4) ns L mm (in).
