CS4309G - (CS4300G Series) Rectifier Diode

Product Overview

📥 Download Datasheet

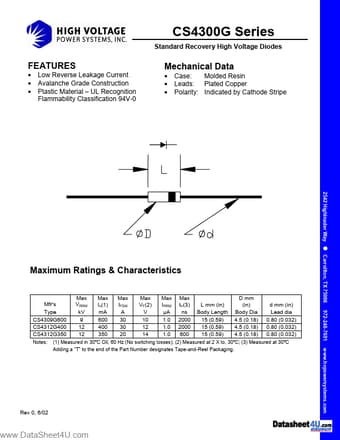

CS4309G (CS4300G Series) Rectifier Diode by High Voltage Power Solutions - Datasheet Preview — Datasheet preview – CS4309G

Datasheet Details

Part number	CS4309G
Manufacturer	High Voltage Power Solutions
File Size	223.09 KB
Description	(CS4300G Series) Rectifier Diode
Datasheet	CS4309G Datasheet
Additional preview pages of the CS4309G datasheet.

Product details

Features

Low Reverse Leakage Current Avalanche Grade Construction Plastic Material.
UL Recognition Flammability Classification 94V-0 Mechanical Data.
Case: Molded Resin Leads: Plated Copper Polarity: Indicated by Cathode Stripe 2542 Highlnader Way z Carrollton, TX 75006 Maximum Ratings & Characteristics Max VRRM kV 9 12 12 Max Io(1) mA 600 400 350 Max IFSM A 30 30 20 Max VF(2) V 10 12 14 Max IRRM µA 1.0 1.0 1.0 Max trr(3) ns 2000 2000.
