HX8678-A Datasheet, Driver, Himax

HX8678-A Features

• Driver 2-level output gate driver for TFT LCD panel 480/320 channels output selectable gate driver with 2 dummy output Maximum +40V output driving voltage Bi-directional data shift capability

PDF File Details

Part number:

HX8678-A

Manufacturer:

Himax

File Size:

673.43kb

Download:

📄 Datasheet

Description:

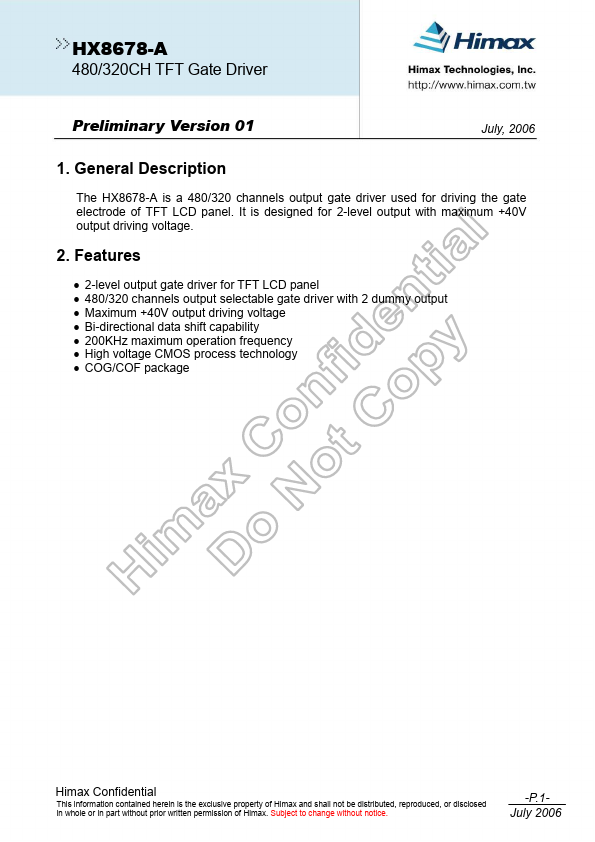

Tft gate driver. The HX8678-A is a 480/320 channels output gate driver used for driving the gate electrode of TFT LCD panel. It is designed for 2-leve

TAGS

HX8678-A

Himax
