Part number JRC13RC
Manufacturer Hirose Electric
File Size 432.78 KB
Description Circular Connectors
Datasheet download datasheet JRC13RC Datasheet
Additional preview pages of the JRC13RC datasheet.

📁 Similar Datasheet

  • JRC-19F - Relay (ETC)
  • JRC-19F - Relay (Ningbo)
  • JRC-21F - SUBMINIATURE DIP RELAY (ETC)
  • JRC-21F - PCB Relay (YUEQING HENGWEI ELECTRONICS)
  • JRC-23F - LOW SIGNAL RELAYS (HF)
  • JRC-27F - SUBMINIATURE DIP RELAY (ETC)
  • JRC2068 - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (JRC)
  • JRC2072 - NJM2072 (New Japan Radio)
  • JRC2073 - NJM2073 (New Japan Radio)
  • JRC2113 - NJM2113 (New Japan Radio)
Other Datasheets by Hirose Electric

Full PDF Text Transcription

Click to expand full text

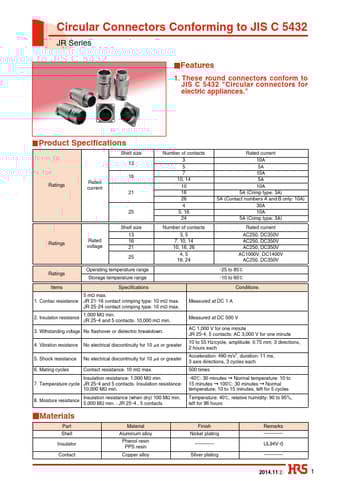

Circular Connectors Conforming to JIS C 5432 JR Series Features 1. These round connectors conform to JIS C 5432 "Circular connectors for electric appliances." Product Specifications Ratings Rated current Shell size 13 16 21 25 Number of contacts 3 5 7 10, 14 10 16 26 4 5, 16 24 Rated current 10A 5A 10A 5A 10A 5A (Crimp type: 3A) 5A (Contact numbers A and B only: 10A) 30A 10A 5A (Crimp type: 3A) Ratings Rated voltage Shell size 13 16 21 25 Number of contacts 3, 5 7, 10, 14 10, 16, 26 4, 5 16, 24 Rated current AC250, DC350V AC250, DC350V AC250, DC350V AC1000V, DC1400V AC250, DC350V Ratings Operating temperature range Storage temperature range -25 to 85ç -10 to 60ç Items Specifications 5 mø max. 1. Contac resistance JR 21-16 contact crimping type: 10 mø max.
