MDF7-11P-2.54DS, MDF - 2.54mm Pitch Bottom Entry Type Connector

MDF7-11P-2.54DS Description

2.54mm Pitch Bottom Entry Type Connector MDF7 Series s.
53.

MDF7-11P-2.54DS Features

* 1. Board to Board Size Freely Settable The board to board size can be set at infinite stages, according to the header pin through type structure and the diverse header variation. The board to board size can be set at infinite stages. Board to Board size Freely settable 2. Integrity of Parts Mounte

MDF7-11P-2.54DS Applications

* Internal connection of telephone sets and OA/FA equipment, connection between IPM, IGBT and the board. A247 sProduct Specifications Rating Current rating: 3A Operating Temperature Range: -30ç to +85ç (Note 1) Storage Temperature Range: -10ç to +60ç (Note 2) Storage Humidity Range: 40% to 70%(Note

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MDF7-11P-2.54DS, MDF. Please refer to the document for exact specifications by model.

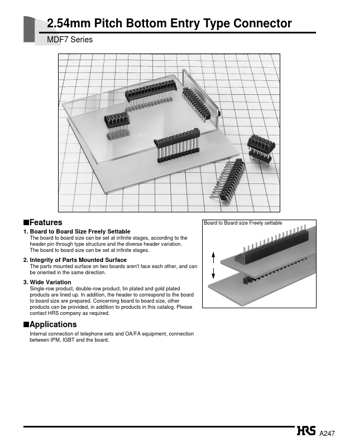

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDF7-11P-2.54DS, MDF
Manufacturer
Hirose Electric
File Size
284.19 KB
Datasheet
MDF-710P.pdf
Description
2.54mm Pitch Bottom Entry Type Connector
Note
This datasheet PDF includes multiple part numbers: MDF7-11P-2.54DS, MDF.
Please refer to the document for exact specifications by model.
