MDF7N60B - N-Channel MOSFET

Datasheet Summary

Description

These N-channel MOSFET are produced using advanced Magnachip’s MOSFET Technology, which provides low onstate resistance, high switching performance and excellent quality.

These devices are suitable device for SMPS, high Speed switching and general purpose applications.

Features

 VDS = 600V  VDS = 660V  ID = 7.0A  RDS(ON) ≤ 1.15Ω @ Tjmax @ VGS = 10V @ VGS = 10V.

MagnaChip

📥 Download Datasheet

Datasheet Details

Part number	MDF7N60B
Manufacturer	MagnaChip
File Size	1.17 MB
Description	N-Channel MOSFET
Datasheet	MDF7N60B Datasheet

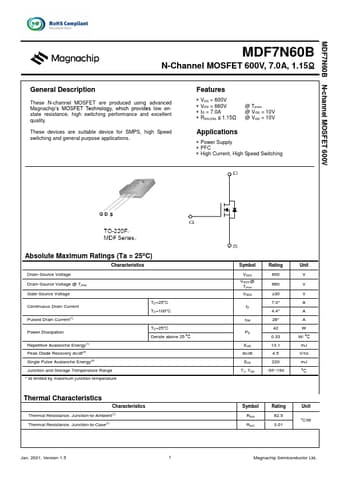

Additional preview pages of the MDF7N60B datasheet.
