DF7-1DP-3.96C, DF7 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)

Hirose

DF7-1DP-3.96C Description

3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL,C-UL and TÜV Listed) DF7 Series Complete Locking Function Completely enclosed lock.

DF7-1DP-3.96C Features

* 1. Complete Locking Function Reliable interior lock protects mated connectors from accidental disconnection. 2. Increased Contact Retention of Crimped Contacts and Prevention of Incomplete Insertion Separate contact retainer increases the contact retention, assures and visually confirms the complet

DF7-1DP-3.96C Applications

* Office equipment, power supplies for industrial, medical and instrumentation applications, variety of consumer electronic and electrical applications. Crimp Sockets qSingle row qDouble rows Retainer (optional, order separately) Shown with terminated and installed contacts. Refer to page 8, 9 for d

📥 Download Datasheet

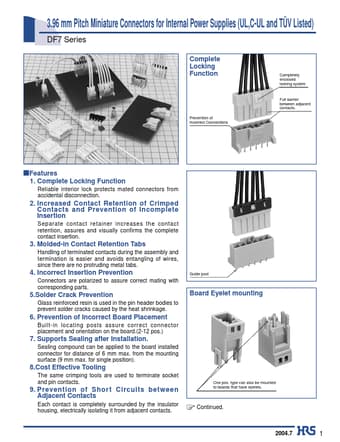

DF7-1DP-3.96C Datasheet Preview — This datasheet PDF includes multiple part numbers: DF7-1DP-3.96C, DF7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DF7-1DP-3.96C, DF7
Manufacturer: Hirose
File Size: 666.51 KB
Datasheet: DF7-1618.pdf
Description: 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
Note: This datasheet PDF includes multiple part numbers: DF7-1DP-3.96C, DF7.
Please refer to the document for exact specifications by model.
