DF7-1DP-3.96DSA - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)

This page provides the datasheet information for the DF7-1DP-3.96DSA, a member of the DF7 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed) family.

Datasheet Summary

Features

1. Complete Locking Function Reliable interior lock protects mated connectors from accidental disconnection. 2. Increased Contact Retention of Crimped Contacts and Prevention of Incomplete Insertion Separate contact retainer increases the contact retention, assures and visually confirms the complete contact insertion. 3. Molded-in Contact Retention Tabs Handling of terminated contacts during the assembly and termination is easier and avoids entangling of wires, since there are no protruding me.

Hirose

📥 Download Datasheet

Datasheet Details

Part number	DF7-1DP-3.96DSA
Manufacturer	Hirose
File Size	666.51 KB
Description	3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
Datasheet	DF7-1DP-3.96DSA Datasheet
Additional preview pages of the DF7-1DP-3.96DSA datasheet.

📁 Similar Datasheet

DF700S20B - Dielectric Filters (Token)
DF710S08B - Dielectric Filters (Token)
DF72S - DF SERIES 15 AMP THERMAL CUTOFFS (Thermtrol Corporation)
DF740S30A - Dielectric Filters (Token)
DF746S20B - Dielectric Filters (Token)
DF752 - Fast Recovery Diode (Dynex)
DF75220 - Fast Recovery Diode (Dynex)
DF75222 - Fast Recovery Diode (Dynex)
DF75224 - Fast Recovery Diode (Dynex)
DF75225 - Fast Recovery Diode (Dynex)

Other Datasheets by Hirose

DF7-1DP-3.96DS - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1DP-3.96C - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1DS-3.96C - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1DS-3.96DS - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1DS-3.96DSA - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1618PC - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1618PCF - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)
DF7-1618SC - 3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL /C-UL and TUV Listed)

Full PDF Text Transcription

Click to expand full text

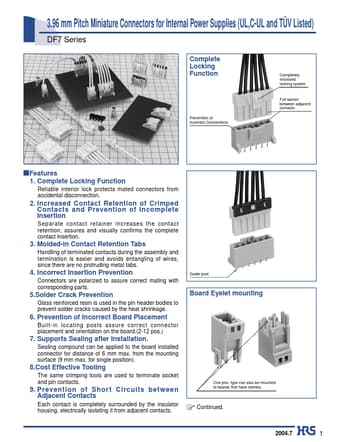

3.96 mm Pitch Miniature Connectors for Internal Power Supplies (UL,C-UL and TÜV Listed) DF7 Series Complete Locking Function Completely enclosed locking system Full barrier between adjacent contacts. Prevention of Incorrect Connections sFeatures 1. Complete Locking Function Reliable interior lock protects mated connectors from accidental disconnection. 2. Increased Contact Retention of Crimped Contacts and Prevention of Incomplete Insertion Separate contact retainer increases the contact retention, assures and visually confirms the complete contact insertion. 3. Molded-in Contact Retention Tabs Handling of terminated contacts during the assembly and termination is easier and avoids entangling of wires, since there are no protruding metal tabs. 4.
