2SA1468 Datasheet - Hitachi Semiconductor

2SA1468 - Silicon PNP Transistor

2SA1468 Silicon PNP Epitaxial Application High voltage amplifier Outline MPAK 3 1 2 1.

Emitter 2.

Base 3.

Collector 2SA1468 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 180 180 5 100 150 150 55 to +150 Unit V V V mA mW °C °C Electrical Charac

2SA1468_HitachiSemiconductor.pdf

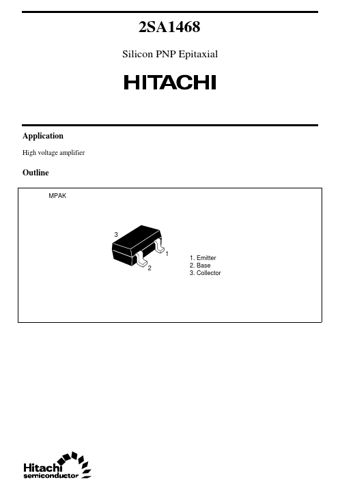

Preview of 2SA1468 PDF
2SA1468 Datasheet Preview Page 2 2SA1468 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1468

Manufacturer:

Hitachi Semiconductor

File Size:

31.04 KB

Description:

Silicon pnp transistor.
