2SA1484
Hitachi Semiconductor
36.38 KB
Silicon pnp transistor.

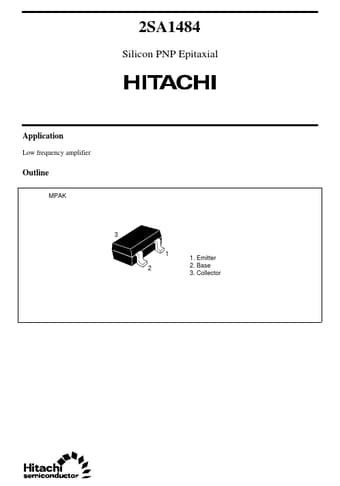

2SA1484
Silicon PNP Epitaxial
Application
Low frequency amplifier
Outline
MPAK
3 1 2
1. Emitter 2. Base 3. Collector
2SA1484
Absolute Maximum Rat.
