2SA1488 Datasheet - Sanken electric

2SA1488 Silicon PNP Transistor

2SA1488/1488A Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC3851/A) Application : Audio and General Purpose sAbsolute maximum ratings (Ta=25°C) Ratings Symbol Unit 2SA1488 2SA1488A VCBO 60 80 V VCEO 60 80 V VEBO 6 V IC 4 A IB 1 A PC 25(Tc=25°C) W Tj 150 °C Tstg 55 to +150 °C sElectrical Characteristics Symbol Conditions ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB VCB= VEB= <.

2SA1488_Sankenelectric.pdf

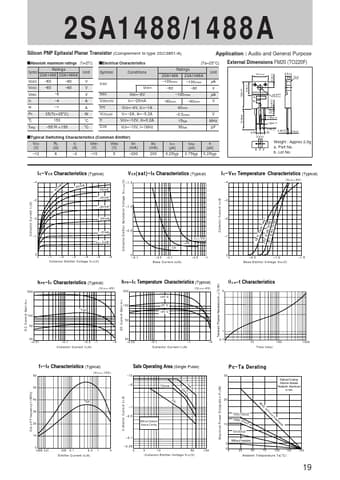

Preview of 2SA1488 PDF

Datasheet Details

Part number:

2SA1488

Manufacturer:

Sanken ↗ electric

File Size:

28.63 KB

Description:

Silicon pnp transistor.
