2SA1494 Datasheet - Sanken electric

2SA1494 Silicon PNP Transistor

2SA1494 Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC3858) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SA1494 200 200 6 17 5 200(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Audio and General Purpose (Ta=25°C) 2SA1494 100max 100max 200min 50min∗ 2.5max 20typ 500typ V MHz pF 20.0min 4.0max 2 3 1.05 +0.2 -0.1 5.45±0.1 5.45±0.1 B C E 0.65 +0.2 .

2SA1494_Sankenelectric.pdf

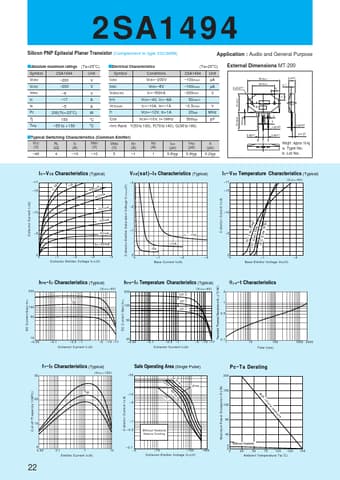

Preview of 2SA1494 PDF

Datasheet Details

Part number:

2SA1494

Manufacturer:

Sanken ↗ electric

File Size:

25.00 KB

Description:

Silicon pnp transistor.
