2SA1400Z - PNP Transistor

Datasheet Summary

Description

High Collector-Emitter Voltage - : VCEO= -400V(Min) Complement to Type 2SC3588Z Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for high voltage switching ,especially in Hybrid integrated cricuits.

📥 Download Datasheet

Datasheet preview – 2SA1400Z

Datasheet Details

Part number 2SA1400Z
Manufacturer INCHANGE
File Size 196.39 KB
Description PNP Transistor
Datasheet download datasheet 2SA1400Z Datasheet
Additional preview pages of the 2SA1400Z datasheet.

📁 Similar Datasheet

  • 2SA1400 - PNP Transistor (NEC)
  • 2SA1400-Z - PNP Transistor (NEC)
  • 2SA1400-Z - Transistor (Kexin)
  • 2SA1402 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1403 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1404 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1405 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1406 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1407 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1408 - Silicon PNP Epitaxial Type Transistor (Toshiba Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

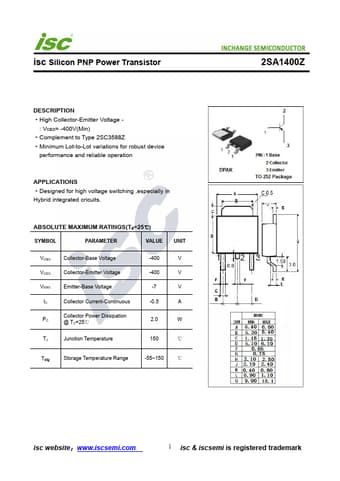

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SA1400Z DESCRIPTION ·High Collector-Emitter Voltage - : VCEO= -400V(Min) ·Complement to Type 2SC3588Z ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for high voltage switching ,especially in Hybrid integrated cricuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -400 V VCEO Collector-Emitter Voltage -400 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous -0.5 A PC Collector Power Dissipation @ TC=25℃ 2.0 W TJ Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
