* High fT : fT typ=500MHz.
* High breakdown voltage : VCEO≥120V.
* Small reverse transfer capacitance and excellent high-frequency characteristic : Cre=1.6pF (NPN), 2.1pF (PNP).
* Complementary pair with the 2SA1404/2SC3598.
* Adoption of FBET process. ( ) : 2SA1404 Specification

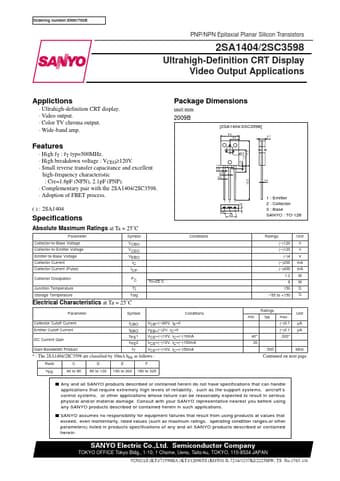

2SA1404
Sanyo Semicon Device
42.76 KB
Pnp/npn epitaxial planar silicon transistors.
Ordering number:ENN1763B
PNP/NPN Epitaxial Planar Silicon Transistors
2SA1404/2SC3598
Ultrahigh-Definition CRT Display Video Output Applications
App.
