2SA1405 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • High fT : fT typ=500MHz.
  • High breakdown voltage : VCEO≥120V.
  • Small reverse transfer capacitance and excellent high-frequnecy characteristic : Cre=2.5pF (NPN), 3.8pF (PNP).
  • Complementary pair with the 2SA1405/2SC3599.
  • Adoption of FBET process. ( ) : 2SA1405 Specifications Package Dimensions unit:mm 2009B [2SA1405/2SC3599] 8.0 4.0 2.7 1.5 3.0 7.0 11.0 1.6 0.8 0.8 0.6 3.0 0.5 15.5 12 3 2.4 4.8 1.2 1 : Emitter 2 : Collector 3 : Base SANYO : TO-126 Absolut.

📥 Download Datasheet

Datasheet preview – 2SA1405

Datasheet Details

Part number 2SA1405
Manufacturer Sanyo Semicon Device
File Size 43.12 KB
Description PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SA1405 Datasheet
Additional preview pages of the 2SA1405 datasheet.

📁 Similar Datasheet

  • 2SA1400 - PNP Transistor (NEC)
  • 2SA1400-Z - PNP Transistor (NEC)
  • 2SA1400-Z - Transistor (Kexin)
  • 2SA1400Z - PNP Transistor (INCHANGE)
  • 2SA1408 - Silicon PNP Epitaxial Type Transistor (Toshiba Semiconductor)
  • 2SA1411 - Transistor (ETC)
  • 2SA1411 - Transistor (Kexin)
  • 2SA1411 - Transistor (TY Semiconductor)
  • 2SA1412 - PNP SILICON TRIPLE DIFFUSED TRANSISTOR (NEC)
  • 2SA1412-Z - PNP Transistor (NEC)
Other Datasheets by Sanyo Semicon Device
  • 2SA1402 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1403 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1404 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1406 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1407 - PNP / NPN Epitaxial Planar Silicon Transistors
  • 2SA1415 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1416 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1417 - PNP / NPN Epitaxial Planar Silicon Transistor

Full PDF Text Transcription

Click to expand full text

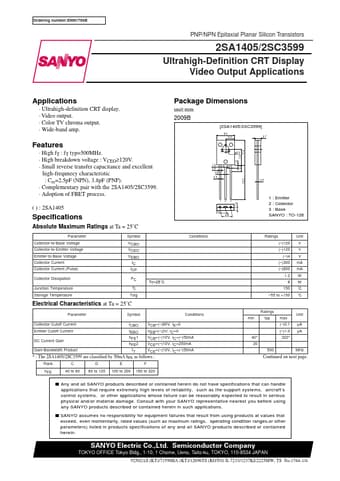

Ordering number:ENN1764B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1405/2SC3599 Ultrahigh-Definition CRT Display Video Output Applications Applications · Ultrahigh-definition CRT display. · Video output. · Color TV chroma output. · Wide-band amp. Features · High fT : fT typ=500MHz. · High breakdown voltage : VCEO≥120V. · Small reverse transfer capacitance and excellent high-frequnecy characteristic : Cre=2.5pF (NPN), 3.8pF (PNP). · Complementary pair with the 2SA1405/2SC3599. · Adoption of FBET process. ( ) : 2SA1405 Specifications Package Dimensions unit:mm 2009B [2SA1405/2SC3599] 8.0 4.0 2.7 1.5 3.0 7.0 11.0 1.6 0.8 0.8 0.6 3.0 0.5 15.5 12 3 2.4 4.8 1.
