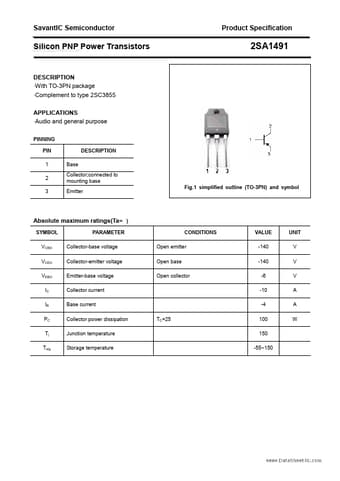

2SA1491 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1491

Manufacturer:

SavantIC

File Size:

309.92kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PN package

Complement to type 2SC3855 APPLICATIONS

Audio and general purpose PINNING PIN 1 2 3 Ba

2SA1491 Application

• Applications
• Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN
