2SA1452 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-220Fa package Low collector saturation voltage High speed switching time Complement to type 2SC3710 APPLICATIONS High current switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC

📥 Download Datasheet

Datasheet preview – 2SA1452

Datasheet Details

Part number 2SA1452
Manufacturer SavantIC
File Size 200.77 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1452 Datasheet
Additional preview pages of the 2SA1452 datasheet.

📁 Similar Datasheet

  • 2SA1452 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1452A - TRANSISTOR (Toshiba Semiconductor)
  • 2SA1450 - PNP/NPN Transistor (Sanyo Semicon Device)
  • 2SA1451 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1451A - TRANSISTOR (Toshiba Semiconductor)
  • 2SA1455K - EPITAXIAL PLANAR PNP SILICON TRANSISTOR (Rohm)
  • 2SA1455K - Transistor (Kexin)
  • 2SA1458 - PNP SILICON TRANSISTOR (NEC)
  • 2SA1458 - PNP Transistor (SEMTECH)
  • 2SA1459 - PNP SILICON TRANSISTOR (NEC)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text

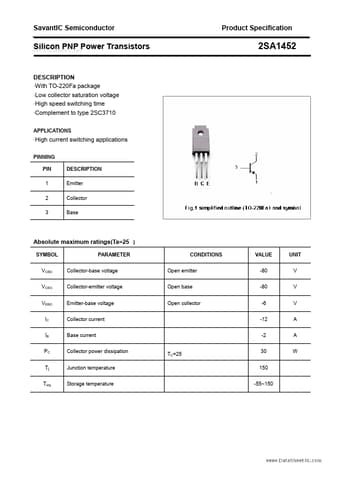

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SA1452 DESCRIPTION ·With TO-220Fa package ·Low collector saturation voltage ·High speed switching time ·Complement to type 2SC3710 APPLICATIONS ·High current switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature CONDITIONS Open emitter Open base Open collector VALUE -80 -80 -6 -12 -2 30 150 -55~150 UNIT V V V A A W TC=25 SavantIC Semiconductor www.DataSheet4U.
