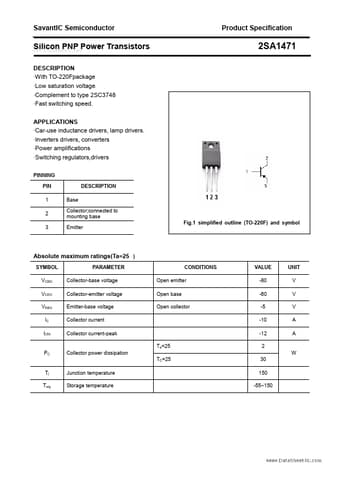

2SA1471 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1471

Manufacturer:

SavantIC

File Size:

277.31kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-220Fpackage

Low saturation voltage.

Complement to type 2SC3748

Fast switching speed. APPL

2SA1471 Application

• Applications
• Car-use inductance drivers, lamp drivers.
• Inverters drivers, converters
• Power amplifications
• Switch
