2SA1474 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1474 Description

Ordering number:EN2526 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1474/2SC3780 Ultrahigh-Definition CRT Display Video Output Applications Appli.

2SA1474 Features

* High fT (fT typ=800MHz).
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=3.0pF (NPN), 4.7pF (PNP).
* Complementary PNP and NPN types.
* Adoption of FBET process. Package Dimensions unit:mm 2010C [2SA1474/2SC3780] ( ) : 2SA1474 Specifications

2SA1474 Applications

* Applications
* Video Output.
* Color TV chroma output.

📥 Download Datasheet

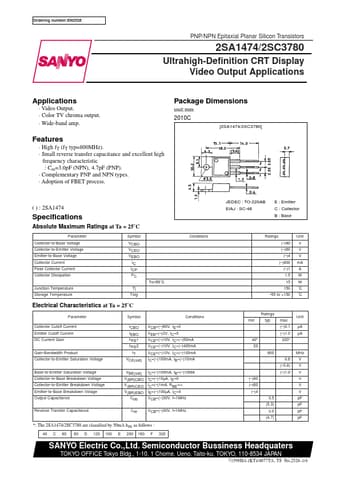

Preview of 2SA1474 PDF
