2SA1443 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1443

Manufacturer:

SavantIC

File Size:

153.35kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220Fa package
  • Low collector saturation voltage
  • Fast switching speed
  • High DC current gain

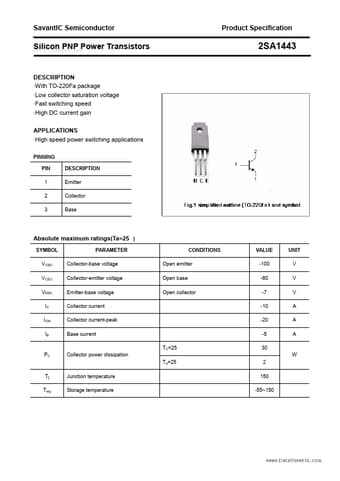

  • Datasheet Preview: 2SA1443 📥 Download PDF (153.35kb)
    Page 2 of 2SA1443 Page 3 of 2SA1443

    2SA1443 Application

    • Applications
    • High speed power switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings(Ta=25 )
