2SA1442 - Silicon PNP Power Transistor

2SA1442 Description

isc Silicon PNP Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -60V(Min). High DC Current Gain- : hFE= 100(Min)@ (VCE= -2V , IC= -1. Low Saturati.

2SA1442 Features

* a high hFE at low VCE(sat),which is ideal for use as a driver in DC/DC converters and actuators. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -7.0 V IC Collector Curre

📥 Download Datasheet

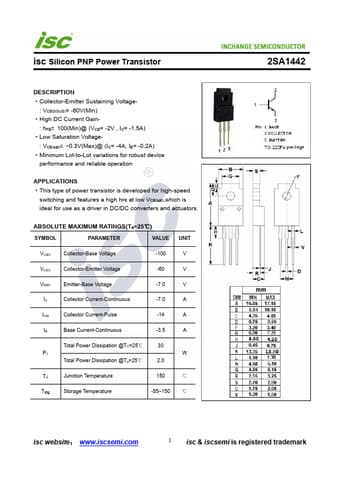

Preview of 2SA1442 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1442
Manufacturer
Inchange Semiconductor
File Size
217.68 KB
Datasheet
2SA1442-InchangeSemiconductor.pdf
Description
Silicon PNP Power Transistor
