2SA1451 - POWER TRANSISTOR

2SA1451 Description

isc Silicon PNP Power Transistor .
Low Collector Saturation Voltage- : VCE(sat)= -0. Good Linearity of hFE. High Switching Speed. Complement to Type 2SC.

2SA1451 Applications

* Designed for high current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -12 A IB Base Current-Contin

📥 Download Datasheet

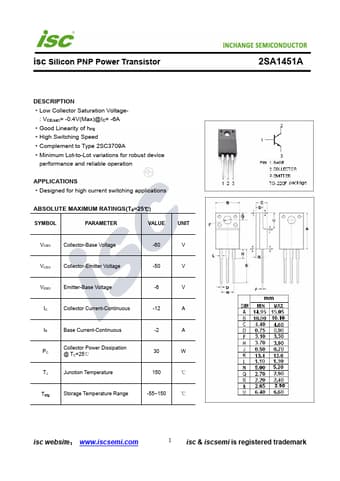

Preview of 2SA1451 PDF
datasheet Preview Page 2
