2SA1492 - Silicon PNP Transistor

📥 Download Datasheet

Datasheet preview – 2SA1492

Datasheet Details

Part number 2SA1492
Manufacturer Sanken electric
File Size 28.78 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA1492 Datasheet
Additional preview pages of the 2SA1492 datasheet.

📁 Similar Datasheet

  • 2SA1492 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1492 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1490 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1490 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1491 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1491 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1493 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1493 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1494 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1494 - POWER TRANSISTOR (Inchange Semiconductor)
Other Datasheets by Sanken electric
  • 2SA1493 - Silicon PNP Transistor
  • 2SA1494 - Silicon PNP Transistor
  • 2SA1488 - Silicon PNP Transistor
  • 2SA1488A - Silicon PNP Transistor
  • 2SA1186 - Silicon PNP Epitaxial Planar Transistor
  • 2SA1215 - Silicon PNP Transistor
  • 2SA1216 - Silicon PNP Epitaxial Planar Transistor
  • 2SA1262 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

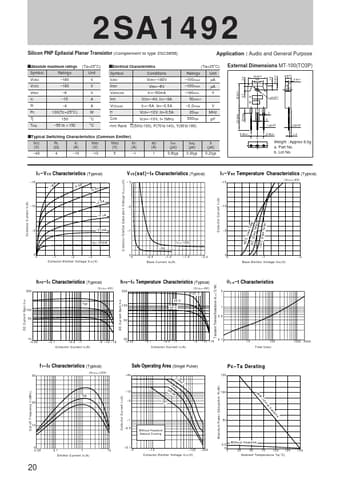

2SA1492 Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC3856) Application : Audio and General Purpose sAbsolute maximum ratings Symbol Ratings VCBO –180 VCEO –180 VEBO –6 IC –15 IB –4 PC 130(Tc=25°C) Tj 150 Tstg –55 to +150 (Ta=25°C) Unit V V V A A W °C °C sElectrical Characteristics (Ta=25°C) Symbol Conditions Ratings Unit ICBO VCB=–180V –100max µA IEBO VEB=–6V –100max µA V(BR)CEO IC=–50mA –180min V hFE VCE=–4V, IC=–3A 50min∗ VCE(sat) IC=–5A, IB=–0.5A –2.0max V fT VCE=–12V, IE=0.
